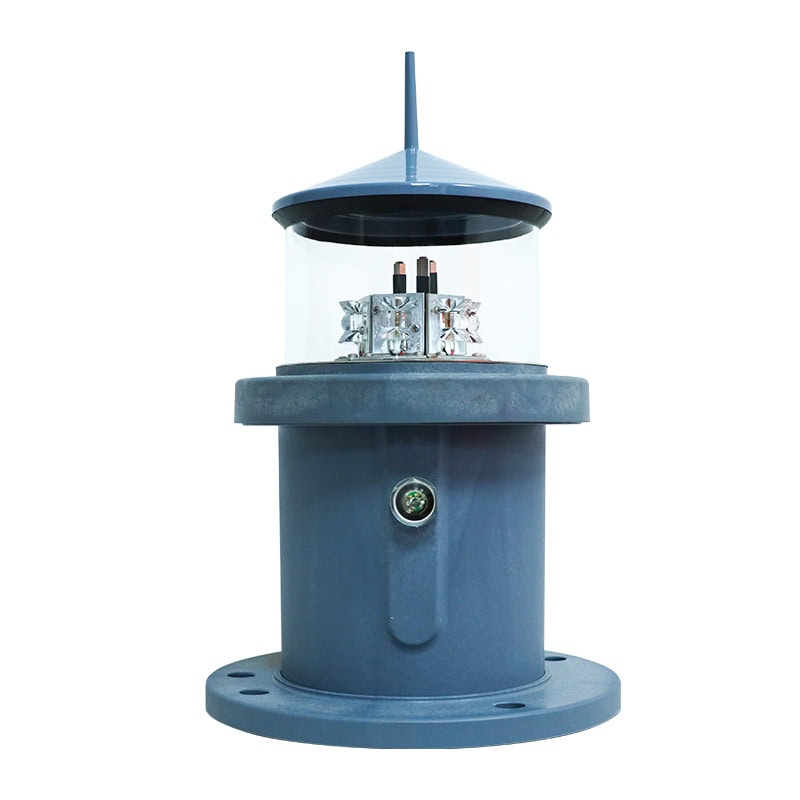

MBL 160

The MBL 160 is a LED marine flashing lantern of short and medium range, with a great optical efficiency and low consumption, fitted with LED diodes of high intensity, reaching a maximum range of 16 nautical miles.

Ideal for on- and off-shore solar beaconing applications requiring a low consumption, such as channels, harbour entrances, jetties, piers, buoys, structures, fish farms, etc.

Its luminous source consists of an innovating lens system especially designed to take the maximum profit of LED diodes, thus obtaining an output of up to 180 Cd/W. Manufactured with high-quality and resistant materials, the MBL 160 provides a long service life under harsh marine conditions.

Designed according to IALA Recommendations.

Technical specifications

High-efficiency luminous system

Up to 11 nm (T=0.74), 16 nm (T=0.85)

Vertical divergence

Up to 30º

360º horizontal output
Average operation lifetime

Over 10 years

Internal photocell adjustable in lux
IP 68 watertightness degree

Immersion resistant

Linear adjustment of luminous intensity
Double RS-232 serial port for setting adjustments

By PC and remote monitoring system

Programming, configuration and operating status

Via PC, IR programmer or Bluetooth

Ready to integrate remote monitoring via GSM, VHF or satellite, synchronization via GPS or AIS AtoN module
Short-circuit, reverse-polarity and transient over-voltage protections
Patented optical system
